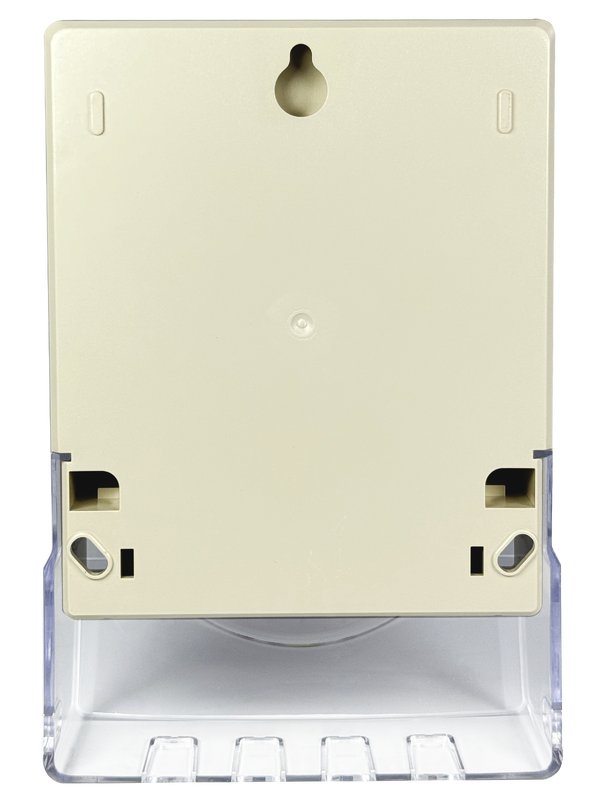

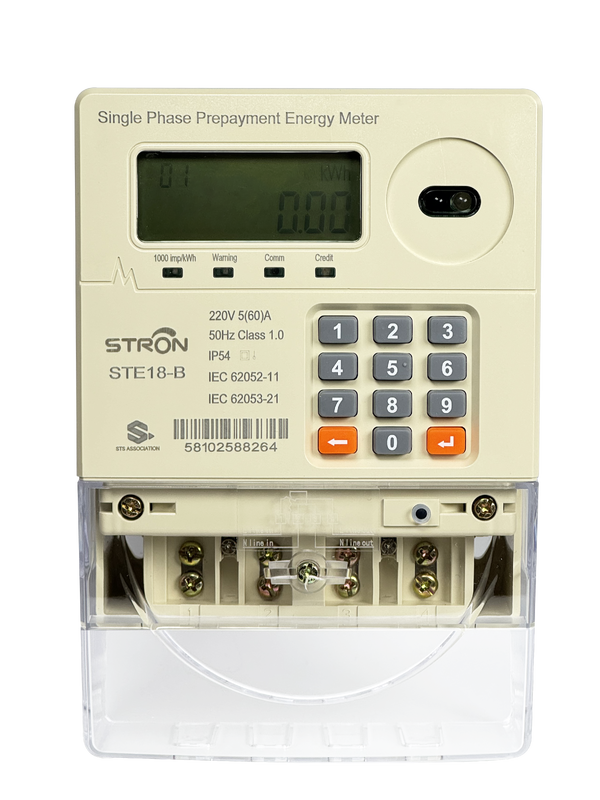

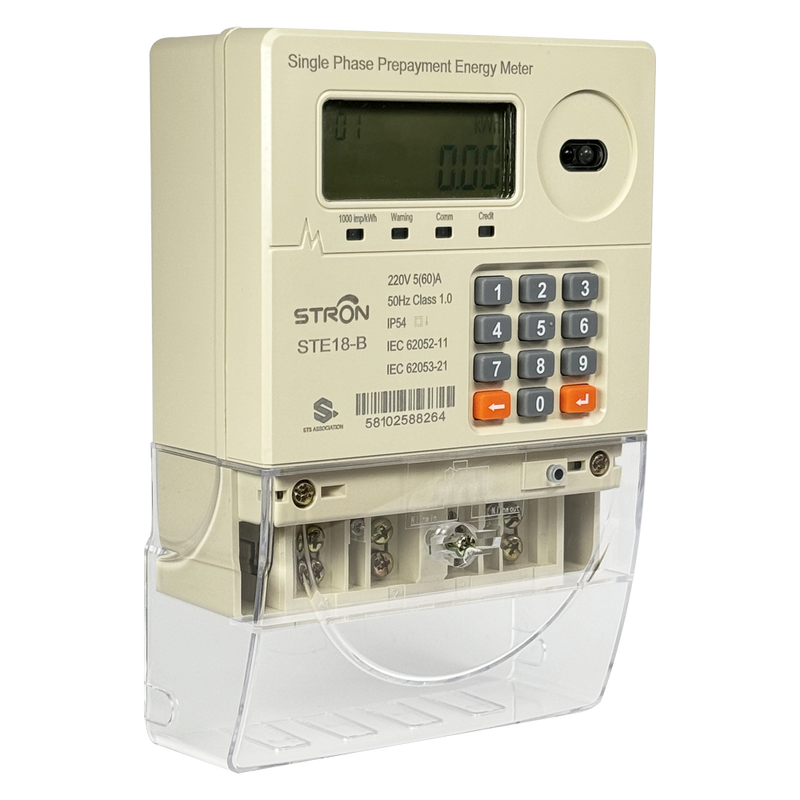

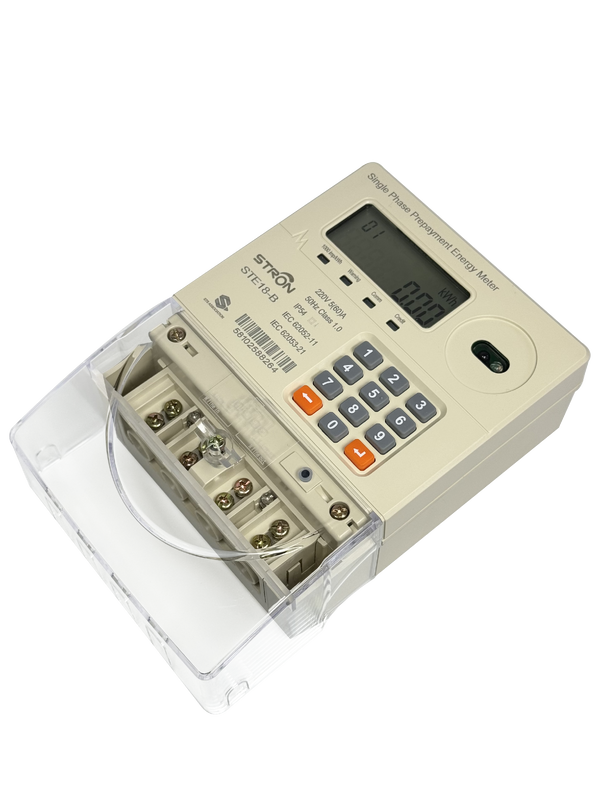

Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment

Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment

Smart prepaid electricity meter with RF remote

STS standard prepayment electricity meter

Split meter design prepaid electricity meter

สถานที่กำเนิด:

หูหนานประเทศจีน

ชื่อแบรนด์:

Stron

ได้รับการรับรอง:

STS

หมายเลขรุ่น:

Ste18

ติดต่อเรา
ขอคําอ้างอิง
รายละเอียดสินค้า
แรงดันไฟฟ้าที่กำหนด:
220V/230V
ช่วงแรงดันใช้งาน:
30%~120%สหประชาชาติ
ความถี่ที่กำหนด:
50-60เฮิร์ต
ปัจจุบัน:
5(60)ก
ค่าคงที่พลังงานที่ใช้งานอยู่:
1,000imp/kWh
ระดับความแม่นยำ:
คลาส 1.0 (พลังงานแอคทีฟ)
มาตรฐาน:
IEC 62052-11/IEC62053-21
ระดับ IP:
IP54
ช่วงอุณหภูมิการทำงาน:
25 ℃-70 ℃
การสื่อสาร:
คลื่นความถี่วิทยุ 433HZ
เน้น:

Smart prepaid electricity meter with RF remote

,

STS standard prepayment electricity meter

,

Split meter design prepaid electricity meter

เงื่อนไขการชําระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
1
ราคา
USD 22-USD 24 Per pc
รายละเอียดการบรรจุ
กล่อง
เวลาการส่งมอบ
15-25 วัน
เงื่อนไขการชำระเงิน
L/C, T/T, Western Union, Paypal, Alipay
สามารถในการผลิต
100,000 ชิ้นต่อเดือน
สินค้าที่เกี่ยวข้อง
ติดต่อเรา
ติดต่อตอนนี้
คําอธิบายสินค้า
Smart Prepayment Keypad STS Single Phase Electricity Meter with RF Remote Reading CIU
The STS Prepaid Single Phase Meter with Customer Interface Unit (CIU) delivers secure, reliable, and user-friendly energy management for residential and small commercial applications. Supporting STS standard vending, RF communication, and split architecture, this system ensures safe indoor access for consumers while protecting the meter from tampering and harsh outdoor environments.
Key Features & Specifications
STS Standard Prepayment
  • Secure 20-digit numeric token input system
  • Eliminates billing delays and revenue losses
  • Compatible with all major STS vending systems

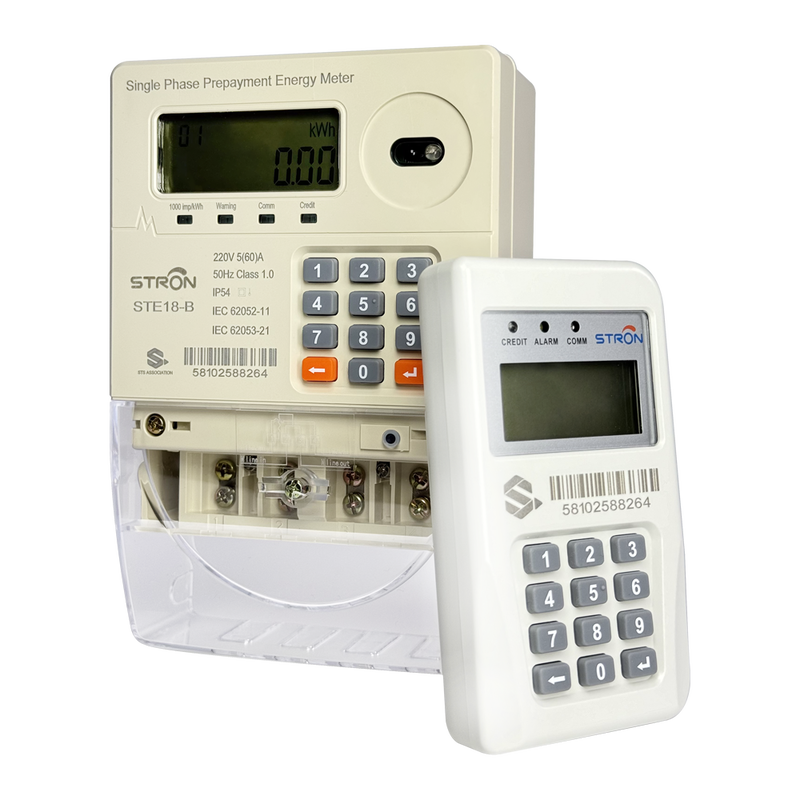

Split Meter Design (Meter + CIU)
  • CIU installed inside the consumer's home for easy access
  • Energy meter installed outside for anti-tamper protection
  • Users can check balance and enter tokens without accessing outdoor meter
  • Enhanced safety, convenience, and regulatory compliance
RF Communication Technology
  • Long-range and stable RF communication between CIU and meter
  • No wiring required between meter and CIU
  • Interference-resistant, suitable for urban and rural deployment
  • Easy installation with reduced maintenance costs
Technical Specifications
Vending Mode STS Token (20-digit)
Communication RF (CIU ↔ Meter), optional PLC/RS485 for backend
CIU Display LCD with balance, consumption, alarm indicators
CIU Input Keypad for token entry and system interaction
Advanced Anti-Tamper Functions
  • Neutral missing detection
  • Reverse energy detection
  • Magnetic field detection
  • Cover opening / terminal cover tamper monitoring
  • Meter bypass detection and reporting
User Experience Features
  • Real-time balance and consumption display via CIU
  • Low credit warning with power-off protection
  • Comprehensive event logs for tamper, token history, and credit records
  • Fast token acceptance and verification process

Installation & Deployment
Suitable for pole-mount or wall-mount installations. Ideal for utilities, property developers, and rural electrification projects. The RF-based split design significantly reduces deployment costs while maintaining system reliability.
System Benefits
Secure Revenue Protection
Through STS standard implementation
Convenient Operation
Indoor interaction via CIU
Reliable Communication
RF technology suitable for all environments
Easy Installation
No wiring required between CIU and meter
Robust Security
Comprehensive tamper detection ensures utility revenue safety
