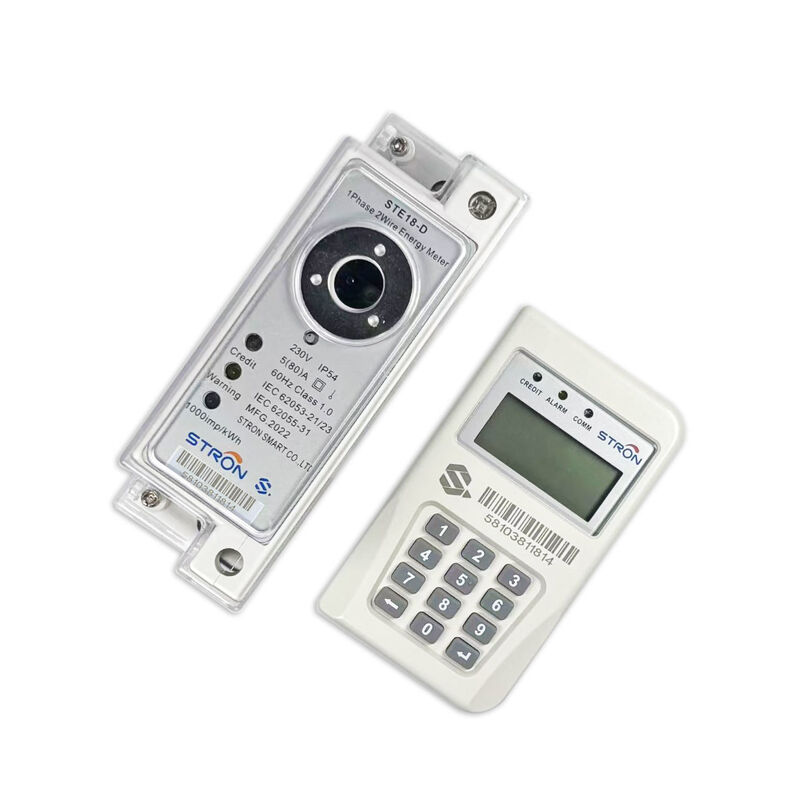

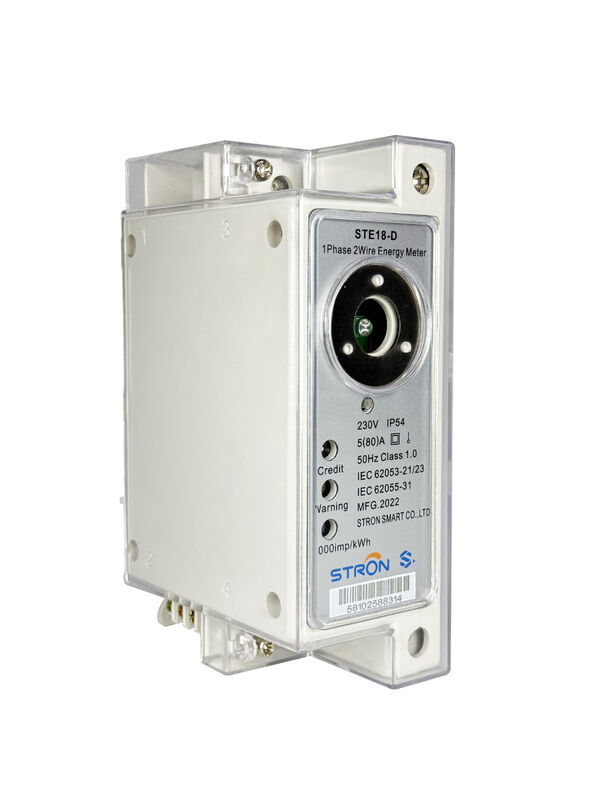

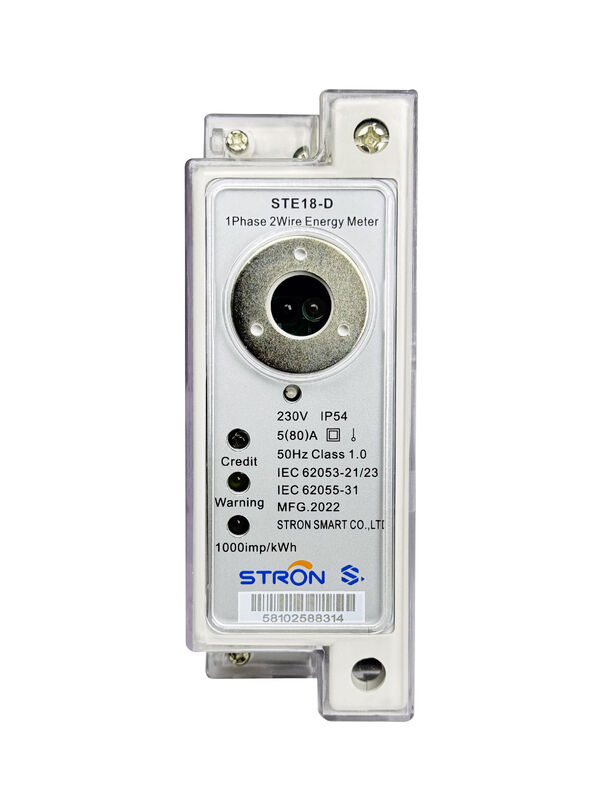

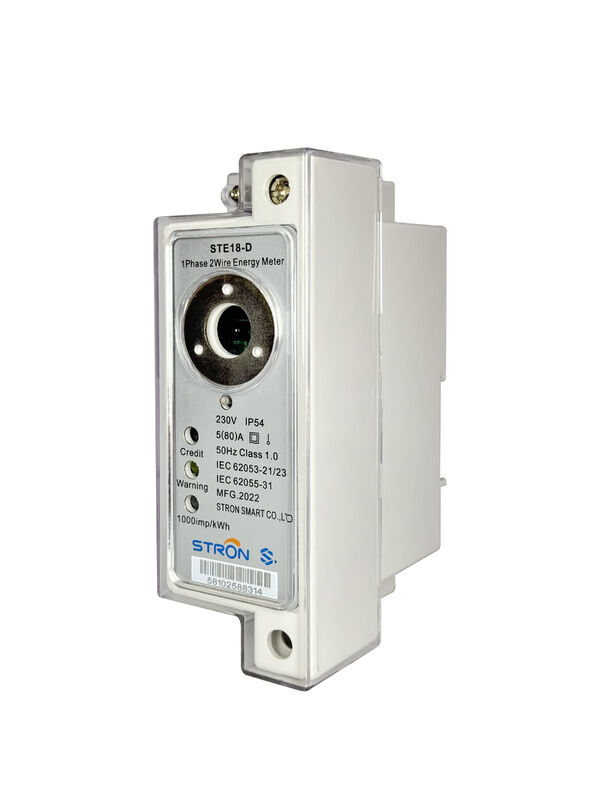

STS DIN Rail Mounted Single Phase Prepaid Electricity Meter with Class 1.0 Accuracy IP54 Waterproof and 5(60)A Current

STS DIN Rail Mounted Single Phase Prepaid Electricity Meter with Class 1.0 Accuracy IP54 Waterproof and 5(60)A Current

Class 1.0 Accuracy STS Prepaid Electricity Meter

IP54 Waterproof Single Phase Electricity Meter

5(60)A Current DIN Rail Mounted Meter

สถานที่กำเนิด:

หูหนานประเทศจีน

ชื่อแบรนด์:

Stron

ได้รับการรับรอง:

STS Certificate

หมายเลขรุ่น:

Ste18

ติดต่อเรา
ขอคําอ้างอิง
รายละเอียดสินค้า
แรงดันไฟฟ้าที่กำหนด:
220V/230V
ช่วงแรงดันใช้งาน:
30%~120%สหประชาชาติ
ความถี่ที่กำหนด:
50-60เฮิร์ต
ปัจจุบัน:
5(60)ก
ระดับความแม่นยำ:
คลาส 1.0 (พลังงานแอคทีฟ)
ระดับ IP:
IP54
ช่วงอุณหภูมิการทำงาน:
-25°C-70°C
เน้น:

Class 1.0 Accuracy STS Prepaid Electricity Meter

,

IP54 Waterproof Single Phase Electricity Meter

,

5(60)A Current DIN Rail Mounted Meter

เงื่อนไขการชําระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
1
ราคา
USD25-USD22 per pc
รายละเอียดการบรรจุ
กล่อง
เวลาการส่งมอบ
151-20 วัน
เงื่อนไขการชำระเงิน
L/C, T/T, Western Union, Paypal, Alipay
สามารถในการผลิต
10,0000 ชิ้นต่อเดือน
คําอธิบายสินค้า
STS DIN Rail Mounted Single Phase RF Electricity Meter for Sub-metering
Product Overview

The Rail-Type Single-Phase Prepaid Meter is a compact, secure, and highly reliable STS-compliant metering solution designed for modern prepaid energy management. With a DIN-rail mounting structure, encrypted token technology, and robust anti-tamper protection, this meter is ideal for apartments, small commercial units, prepaid projects, and smart utility deployments across Africa, Asia, and developing regions.

Key Features
STS Prepaid System

Supports IEC 62053-21/23, IEC62055-31 encrypted token technology, ensuring secure and transparent energy vending.

Compact DIN-Rail Design

Easy installation in distribution boards, meter boxes, rental units, and compact environments.

Accurate Measurement

Class 1.0 accuracy with stable performance under a wide voltage range.

Multiple Vending Channels
  • Mobile app vending
  • Web portal vending
  • POS terminal
  • USSD/SMS (optional)
  • Utility vending system
Intelligent Load Control

Automatic disconnection when credit runs out, overload trip protection, and configurable load limits.

Strong Anti-Tamper Protection

Detects cover opening, magnetic interference, reverse connection, and bypass attempts.

Communication Options
  • RS485
  • PLC / RF (optional)
  • M-Bus / Modbus
  • Supports integration with AMI/AMR systems
Wide Application Range

Ideal for prepaid energy rollouts, rental properties, hostels, smart housing, and utility projects.

Benefits for Utilities
  • Zero outstanding bills - prepaid system improves revenue collection
  • Faster deployment with DIN-rail compact design
  • Reduced field losses through strong anti-tamper functions
  • Supports mass vending through multiple channels
  • Easy integration with existing STS vending platforms
